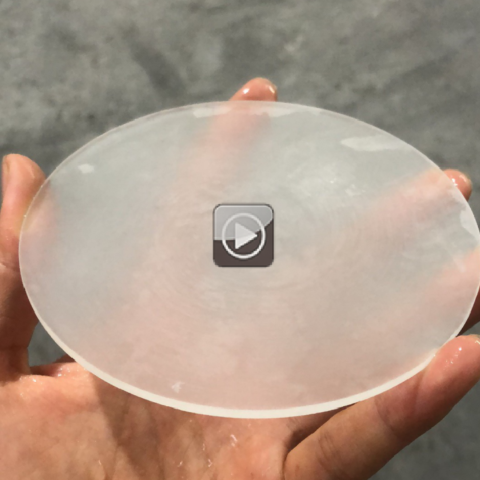

Sapphire Cuts Video Details
Cutting Tools:Diamond Wire Loop Machine ESH600-2T
| Wire Type | Multi strand wire |
| Linear Velocity(m/s) | 10-60 m/s |
| Feed Speed(mm/min) | 10-999 mm/h |
| Cooling | wet/dry |
| Application | no limit |
Cutting Process:
Cutting Material :sapphire rod
Wire Type: D0.6
Linear Speed: 23m/s
Feed Speed: 190 mm/h
Cooling Way: wet
Tensile Strength: 130N

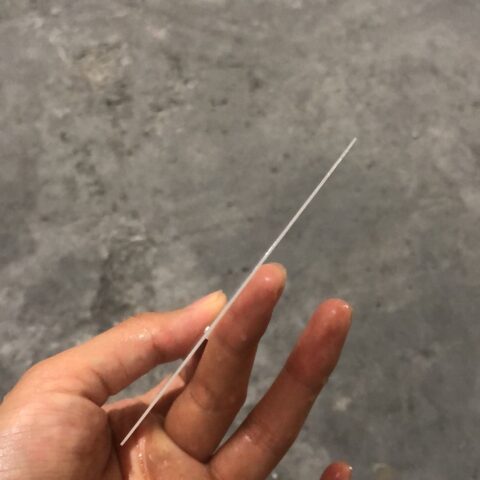

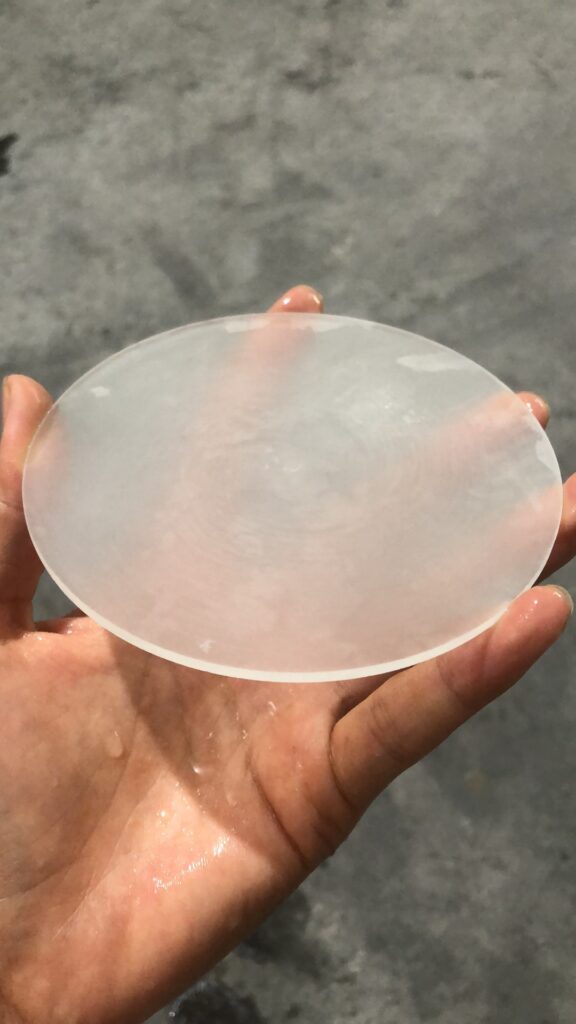

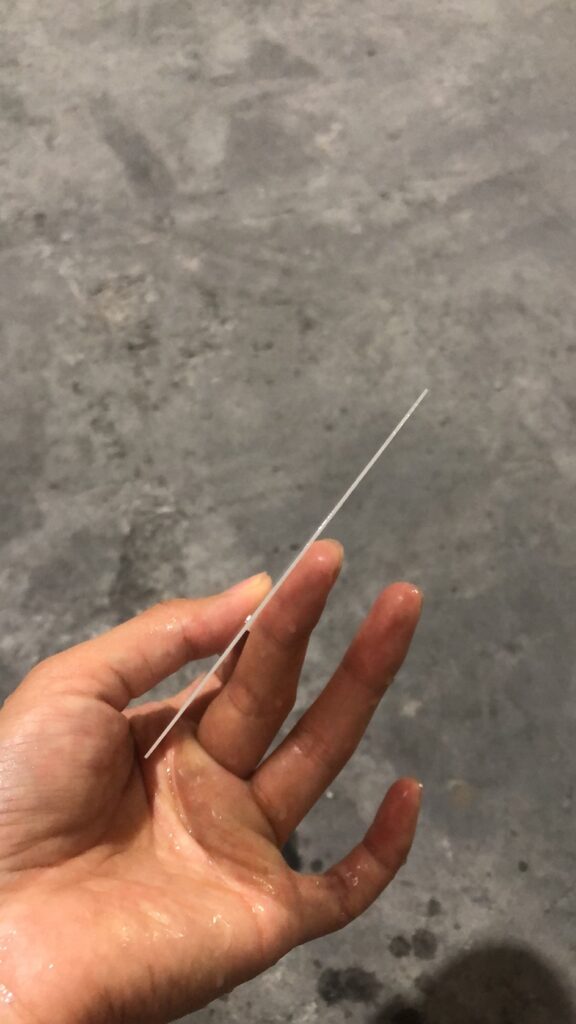

Cutting Results：
Cutting Advantages
1,Convinient
This machine can set a thicness yourself ,the machine will keep cutting required thickness auotomatically.
2,Surface Quality
There is no wire mark on the surface, it’s flat and shinning,thickness tolerance is 0.05 MM.
3,Cutting Efficiency
The cutting tool is circular diamond wire (endless diamond wire loop) linear speed can be very fast(more than 60 M/S).High linear speed ensures high cutting speed, diamond wire loop can highly improve cutting efficiency.
Summary
Endless wire cutting machine uses circular diamond wire (endless diamond wire) as cutting tool,the cutting speed is very fast.And machine is quite simple and small.it’s costy effective compare to conventional open diamond wire.
What We Cut:
Not only sapphire but also Stone,Metal,Glass,Silicon and other hard brittle materials can be cut by diamond wire loop saw.
Special diameter and length on request!
