ESG200 Endless Wire Cutting Machine-Diamond Wire Loop Saw-Ensoll
Product Features Location Memory: This machine is equipped with a Location Memory function, which automatically records the current cutting position in the event of…

Main drive motor power: 2kW
Total weight: 3500 kg.
Overall dimensions: Length 3800mm x Width 3000mm x Height 2800mm
Cutting range: Within 2000mm x 600mm x 600mm (length x width x height)
Displacement servo motor power for Y-axis: 1.5kW; for Z-axis: 1.5kW
Cutting line speed: 0-40m/s, adjustable
Cutting line diameter: 0.35-0.8mm

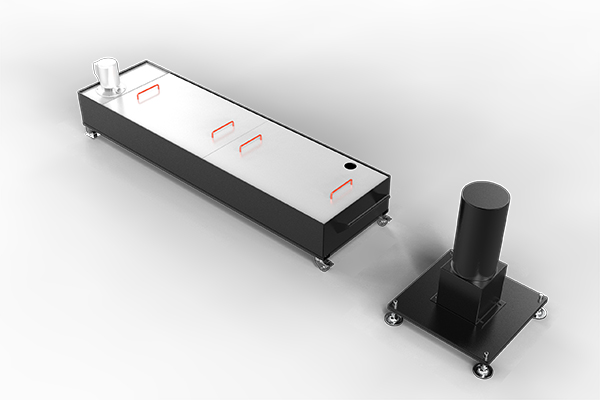

Cooling method: Water circulation

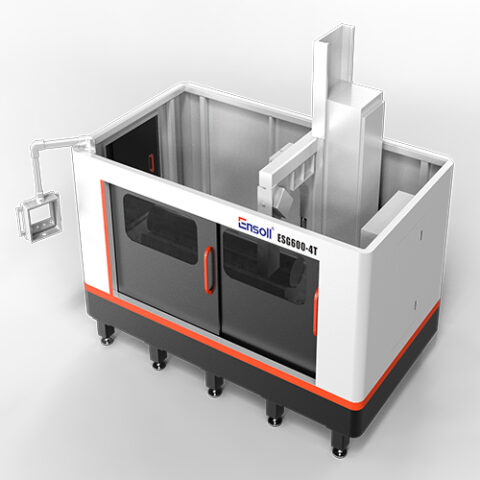

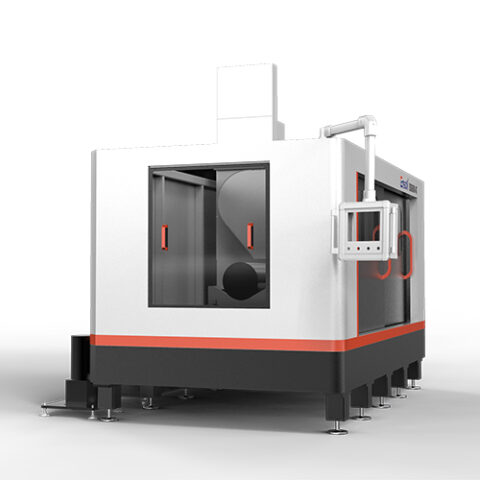

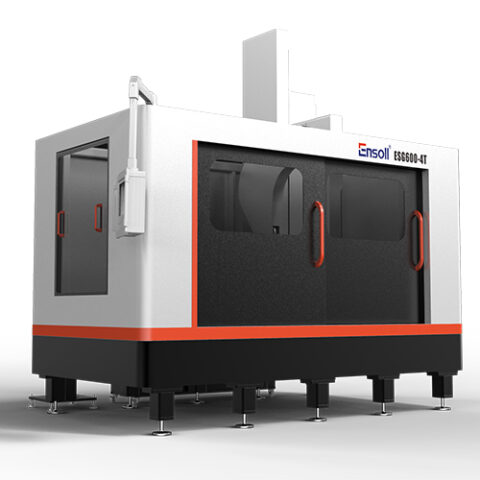

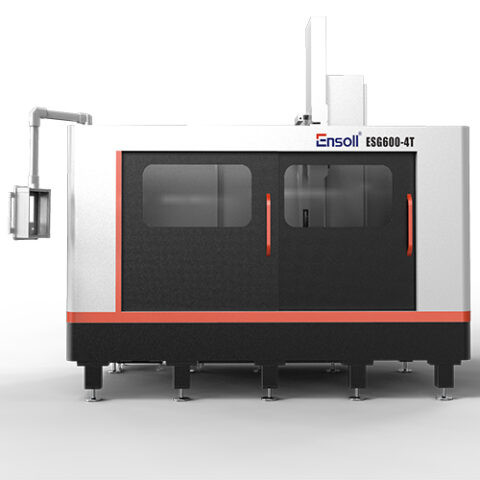

The ESC600-4T silicon rod cutting machine is a specialized wire saw designed for the quantitative segmentation of rod-shaped monocrystalline silicon (polycrystalline silicon). It utilizes a circular diamond wire developed by our company as the cutting tool and is compatible with circular diamond wires of 0.35mm, 0.45mm, 0.5mm, and 0.6mm in diameter.

The ESC600-4T silicon rod cutting machine places the silicon rod on the worktable during cutting. A cut is made at the marked position according to the cutting size requirements. The silicon rod does not need to be moved; the worktable horizontally feeds the appropriate dimensions based on the programmed settings to achieve quantitative segmentation cutting. The horizontal movement is driven by a displacement servo motor, ensuring precise sizing, with the ability to cut materials as thin as 0.5mm. The circular diamond wire serves as a specialized cutting tool, producing minimal cutting noise, low energy consumption, high cutting efficiency, reduced material wastage due to small kerfs, and smooth surfaces on silicon rods, achieving a “cutting with grinding” effect. This machine is a dual-purpose cutting machine for both wet and dry conditions, suitable for cutting rod materials under various working conditions. It can cut crystal rod sizes with maximum lengths and diameters reaching up to 2000mm x 600mm.

The main advantages of this equipment are as follows:
The ESC600-4T is purpose-built for the quantitative segmentation of rod-shaped monocrystalline and polycrystalline silicon. It uses a closed-loop diamond wire as the cutting tool and is also suitable for cutting other rod-type materials under various working conditions.
The cutting range is 2000 mm × 600 mm × 600 mm (length × width × height). Silicon rods are clamped once and do not need to be repositioned during the cut, which is what keeps the cut faces parallel.
The machine accepts closed-loop diamond wire from 0.35 mm to 0.8 mm in diameter. Because kerf width follows wire diameter, thinner wire means less material lost per cut.
Cutting line speed is adjustable from 0 to 40 m/s. The worktable is driven by a Y-axis and Z-axis displacement servo motor (1.5 kW each), so the feed can be programmed to match the section thickness required.
Two things work together: the silicon rod is clamped once and never moved during the cut, and the support platform uses an elastic support design that significantly reduces chipping. Measured edge chipping stays within 5 mm, and sections as thin as 0.5 mm can be produced.
Silicon sludge hardens on the track and quickly degrades screw-type guide rails. Hard rails tolerate that condition far better — our first hard-rail machine has been running for six years and the track is still within tolerance.
The machine is designed for both wet and dry operating conditions. Whether dry cutting is appropriate depends on the material being cut — some materials require coolant for chip removal and surface quality. Please confirm the intended material with us and we will advise the correct configuration.
Main drive motor is 2 kW; total weight is 3500 kg; overall dimensions are 3800 mm × 3000 mm × 2800 mm. Because the cutting assembly moves instead of the workpiece, the machine occupies roughly half the floor space of a conventional design handling rods of the same length. Cooling is by water circulation.
