ESG400-4T Gantry Endless Diamond Wire Saw Machine
Machine size: With rotary table, 2200 × 1510 × 1100 mm; standard machine, 2100 × 1510 × 1100 mm.
Machine weight: With rotary table, 1,000 kg net / 1,200 kg operating with a full water tank; standard machine, 900 kg net / 1,100 kg operating with a full water tank.
Power: With rotary table, 4 kW; standard machine, 3.5 kW.
Wire length: 2893 mm.
Wheel options: Fan cup wheels or Fuma wheels optional (fan cup wheels shown).
- Description
- Inquiry
Product Introduction:
The ESG400-4T is a gantry-style endless diamond wire saw machine designed for precision cutting of optical glass, crystal, sapphire, ceramics, quartz, silicon, graphite, and other hard and brittle materials. It is available as a standard machine or with an optional rotary table for applications that require flexible workpiece positioning.
Product Specifications:
| Machine Size | With rotary table: 2200 × 1510 × 1100 mm; Standard machine: 2100 × 1510 × 1100 mm |
| Machine Weight | With rotary table: 1,000 kg net / 1,200 kg operating (water tank full); Standard machine: 900 kg net / 1,100 kg operating (water tank full) |
| Power | With rotary table: 4 kW; Standard machine: 3.5 kW |
| Wire Length | 2893 mm |
| Wheel Options | Fan cup wheels or Fuma wheels optional (fan cup wheels shown) |
Configuration Options:

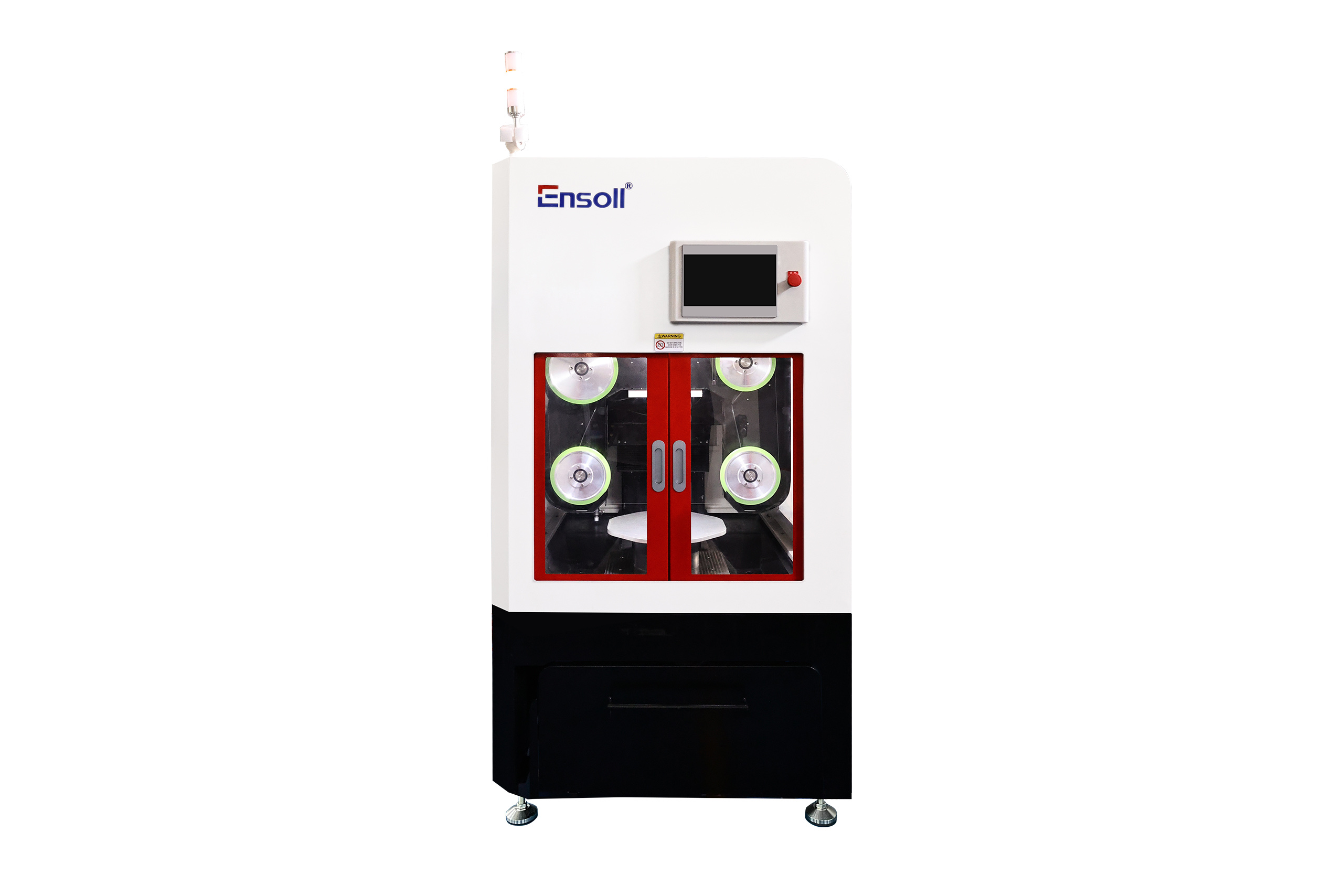

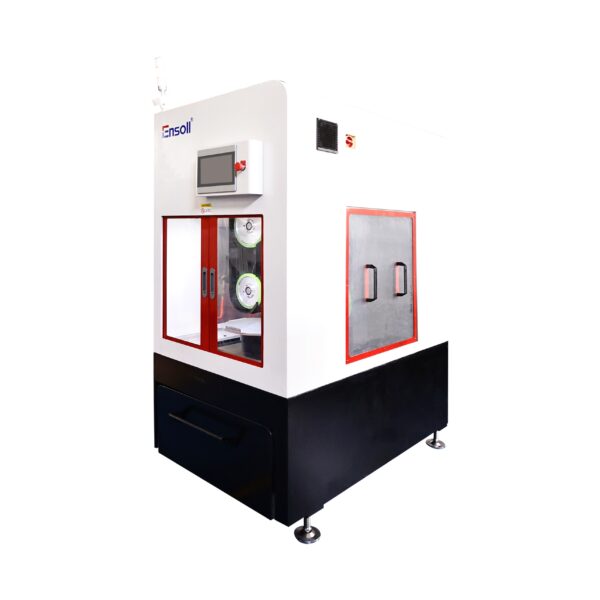

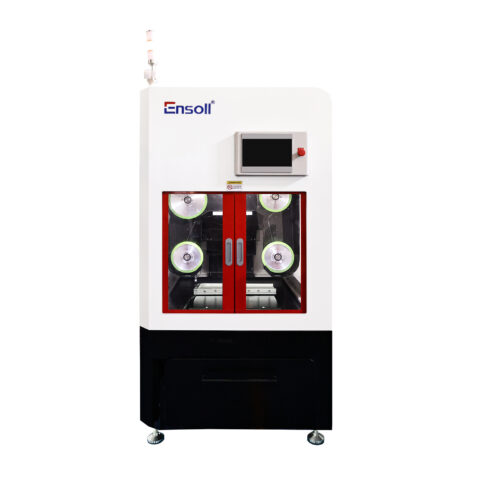

The machine can be configured with or without a rotary table. Fan cup wheels and Fuma wheels are optional; the machine shown in the product images is equipped with fan cup wheels.
