ESO-GM

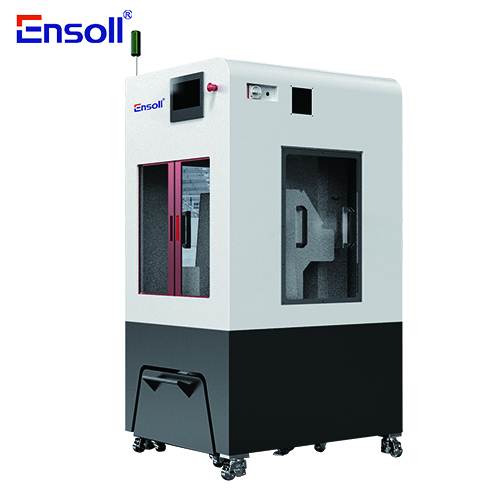

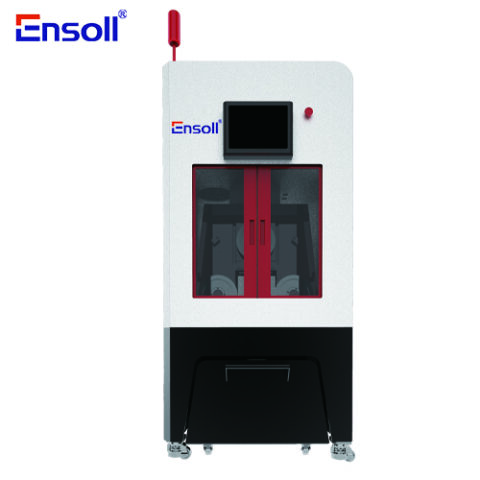

Our advanced diamond wire cutting machine is specifically engineered for high-precision processing of all types of magnetic materials, including:

Permanent Magnetic Materials:

– NdFeB Magnets (neodymium iron boron)

– SmCo Magnets (samarium cobalt)

– AlNiCo Magnets (aluminum nickel cobalt)

– Ferrite Magnets (ceramic)

– Rare Earth Cobalt Magnets

Soft Magnetic Materials:

– Silicon Steel/Electrical Steel

– Soft Ferrite (MnZn/NiZn)

– Amorphous Alloys

– Nanocrystalline Alloys

– Pure Iron

– Permalloy (Ni-Fe alloy)

Functional Magnetic Materials:

– Magnetostrictive Materials (e.g. Terfenol-D)

– Magnetic Recording Materials (e.g. CoCrPt)

– Magnetic Refrigeration Materials (e.g. Gd-Si-Ge)

– Spintronics Materials (e.g. GMR)

Product Advantages

1.High-Efficiency Batch Processing

– Multi-block loading capability enables simultaneous cutting of multiple workpieces

– Significantly improves production throughput for all magnetic material types

– Ideal for mass production of NdFeB and SmCo magnet components

2.Automatic Tension Adjustment

– Intelligent tension control system maintains optimal cutting performance

– No manual adjustment required for different materials

– Ensures consistent results from soft ferrites to hard rare-earth magnets

3.Rapid Wire Change System

– Single operator can complete wire replacement in just 1 minute

– Minimizes downtime when switching between material types

– Special design prevents wire tangling during changeovers



4.Clean Processing Environment

– Dry and wet separation design

– Effectively controls dust pollution

– Particularly important for sensitive materials like amorphous alloys

5.Operator-Friendly Design

– Single operator can manage multiple machines simultaneously

– Reduces labor costs by up to 35%

– Minimizes operation errors through intelligent controls



Technical Specifications:

– Surface finish: Ra <0.5μm

– Maximum cutting thickness: 300mm

– Wire diameter range: 0.25-2.5mm

– Compatible with all magnetic material types

Specifications：

Item	Specification
Cutting Height Setting	0–200mm
Maximum Cutting Size	300×200×200 mm
Feed Speed	0.1–2000 mm/min
Spindle Speed	0–3000 RPM
Cutting Wire Speed	1–32 m/s
Wire Length	1930 mm
Wheel Diameter	230 mm
Operating Voltage	220V
Total Power	4.2 kW
Worktable Load Capacity	100 kg
Water Tank Dimensions	945×550×415 mm (L×W×H)
Machine Dimensions	1225×930×2170 mm (L×W×H)
Water Pump	220V, 25 L/min
Weight	1060 kg

Applications:

– EV motor components (NdFeB/SmCo magnets)

– Transformer cores (silicon steel)

– Sensor elements (Permalloy)

– Specialized components (Terfenol-D, GMR materials)

This system represents the cutting edge in magnetic material processing technology, combining precision, efficiency and versatility for industrial applications.
