Ensoll diamond wire saw cutting machines are designed for precision slicing, cropping and special-shaped cutting of hard brittle materials, including silicon, sapphire, quartz, ceramics, graphite, optical glass and magnets.

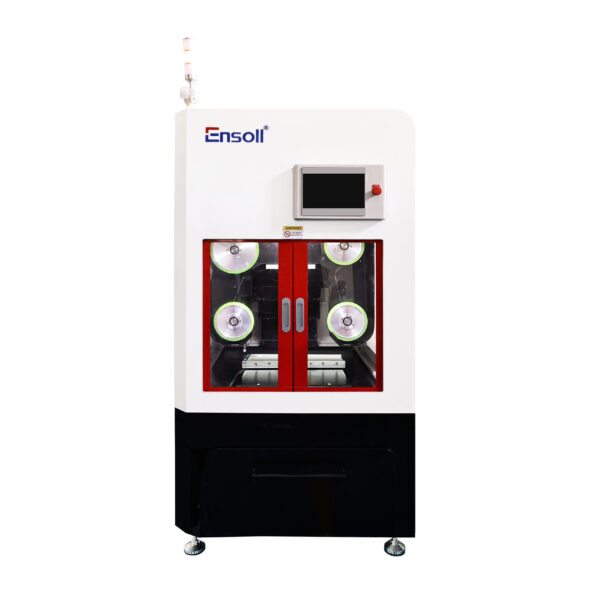

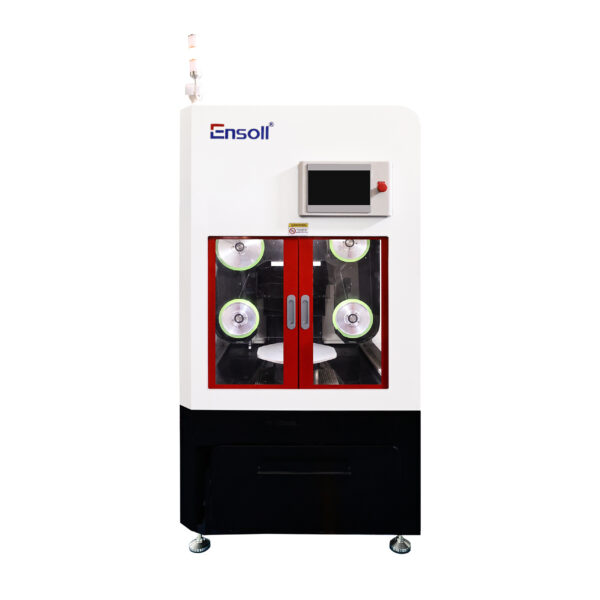

Read MoreQuick ViewESG400-4T Gantry Endless Diamond Wire Saw Machine
Machine size: With rotary table, 2200 × 1510 × 1100 mm; standard machine, 2100 × 1510 × 1100 mm.
Machine weight: With rotary table, 1,000 kg net / 1,200 kg operating with a full water tank; standard machine, 900 kg net / 1,100 kg operating with a full water tank.
Power: With rotary table, 4 kW; standard machine, 3.5 kW.
Wire length: 2893 mm.
Wheel options: Fan cup wheels or Fuma wheels optional (fan cup wheels shown).
Read MoreQuick ViewESO-GM
Cutting Height Setting ：0–200mm
Maximum Cutting Size ：300×200×200 mm
Feed Speed ：0.1–2000 mm/min
Spindle Speed ：0–3000 RPM
Cutting Wire Speed ：1–32 m/s
Wire Length ：1930 mm
Wheel Diameter ：230 mm
Operating Voltage：220V
Total Power ：2.5 kW
Worktable Load Capacity 100 kg
Water Tank Dimensions ：945×550×415 mm (L×W×H)
Machine Dimensions ：1120×933×1094 mm (L×W×H)
Water Pump ：220V, 25 L/min
Weight : 1060 kg
Read MoreQuick ViewESD150-3T Diamond Wire Saw Cutting Machine
Equipment size: 650mm*750mm*980mm(L*W*H)
Equipment weight: 230Kg
Workbench size: 150*150mm
Feed speed: 0.1-10mm/min
Cutting line speed: 0-35m/s
Cutting stroke: 150*150mm (Y axis*Z axis)
Maximum cutting size: 150*150*150mm(L*W*H)
Drive mode: same service
Working voltage: 220V
Workbench load: 10Kg
Total power: 1.8KW (estimated)
Wire length: 1470±5mm (tentative, final wire length confirmed after trial cutting)
Wire wheel: two 180mm, one 230mm (single slot)
Wire diameter: 0.35mm
Read MoreQuick ViewESC600-4T Diamond Wire Saw Cutting Machine
Main drive motor power: 2kW
Total weight: 3500 kg.
Overall dimensions: Length 3800mm x Width 3000mm x Height 2800mm
Cutting range: Within 2000mm x 600mm x 600mm (length x width x height)
Displacement servo motor power for Y-axis: 1.5kW; for Z-axis: 1.5kW
Cutting line speed: 0-40m/s, adjustable
Cutting line diameter: 0.35-0.8mm
Cooling method: Water circulation
Read MoreQuick ViewESH600-4T Endless Wire Cutting Machine
Read MoreQuick ViewAutomatic Special-Shaped Cutting Machine
Power Supply: 220V
Maximum Cutting Size: 250mm × 250mm × 250mm (Length × Width × Height)
Cutting Stroke: 300mm × 300mm (X-axis × Y-axis)
Positioning Accuracy: 0.05mm
Total Power: 3KW
Total Weight: 980KG
Worktable Load Capacity: 100kg
Maximum Speed: 2800 RPM
Maximum Wire Speed: 38m/c
Machine Dimensions: 1595mm × 1383mm × 1805mm (Length × Width × Height)
Water Tank Dimensions: 1190mm × 1050mm × 430mm
Read MoreQuick ViewESG200 Endless Wire Cutting Machine-Diamond Wire Loop Saw-Ensoll
Read MoreQuick ViewESV-3S-Benchtop diamond wire loop saw machine
Read MoreQuick ViewESV350-2T Automatic Wire Saw Machine
Read MoreQuick ViewESG250-4T Si ingot Cropping Machine
Equipment dimensions: 1900×1420×2080mm (L×W×H)
Maximum cutting size: 350mm×2350mm×350mm (L×W×H)
Cutting feed speed: 0.1-1000mm/min
Cutting wire diameter: 0.45-0.65mm
Wire speed setting: 1-32m/s
Cutting height setting: 0.1-250mm
Maximum spindle speed: 3000RPM
Worktable load capacity: 300KG
Active wheel diameter: 280mm
Passive wheel diameter: 260mm
Water pump: 220w 30L/m
