Magnetic Cutting,NdFeB cutting with Endless Wire Saw

Magnetic Cutting,NdFeB cutting with Endless Wire Saw


  • Description
  • Inquiry

NdFeB Cutting with Endless Diamond Wire Saw


NdFeB Cutting video details

Cutting Tools:Diamond Wire Loop

Wire TypeMulti strand  wire
Linear Velocity(m/s)30-60 M/S
Feed Speed(mm/min)5 -100mm/s
ApplicationMagnetic Materials(NdFeB)

Cutting Process:

Cutting Material :NdFeB


Linear Speed: 42m/s

Feed Speed: 5 mm/min

Cooling Way:wet


Cutting Result:

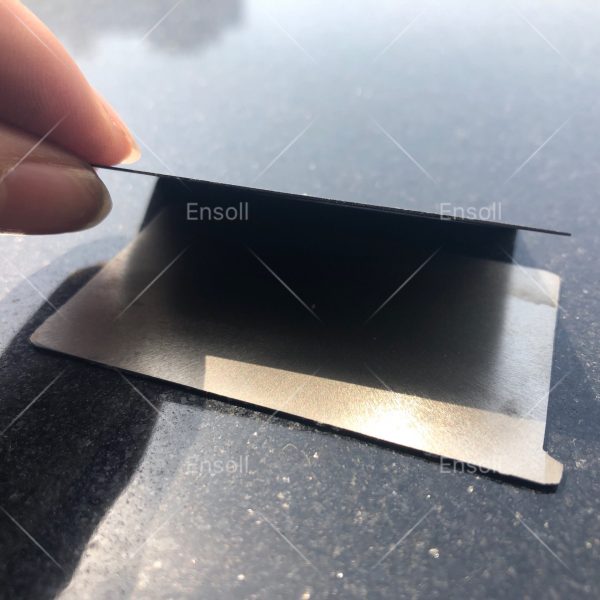

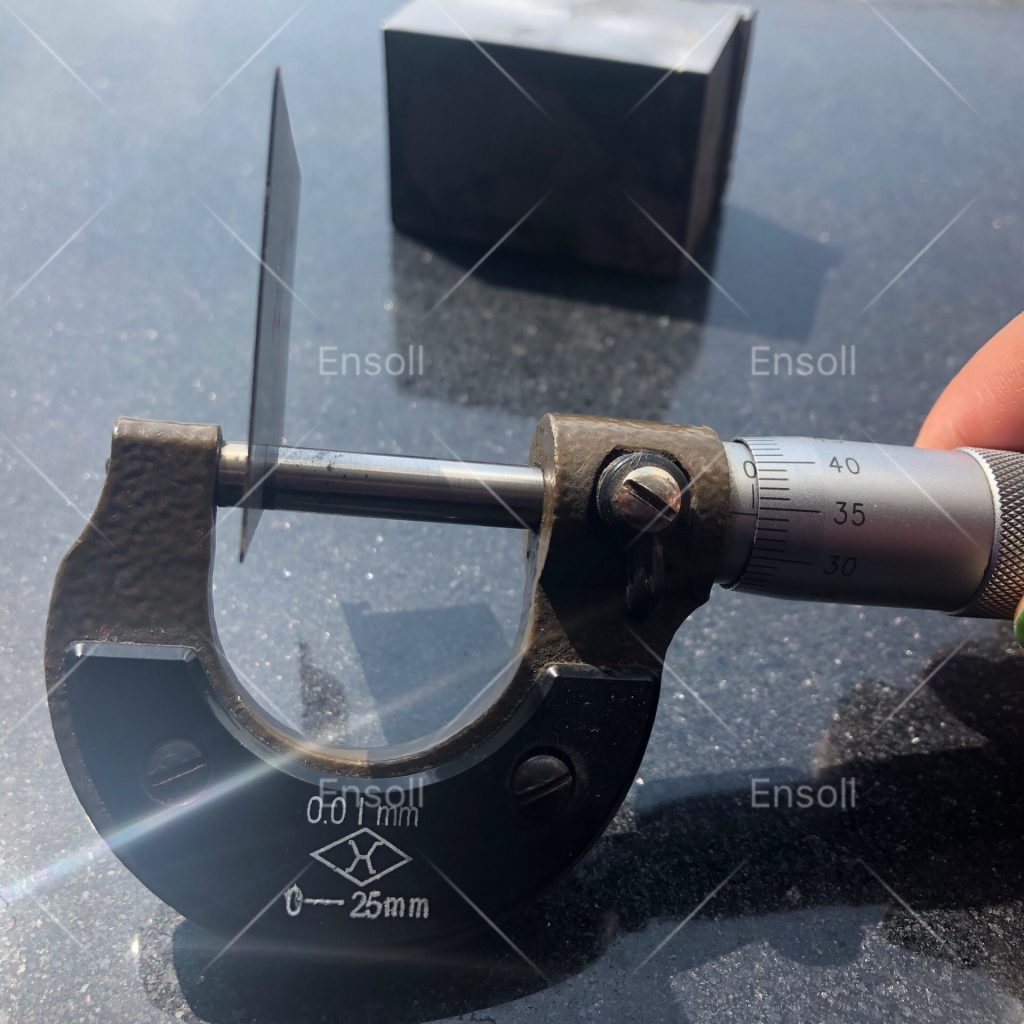

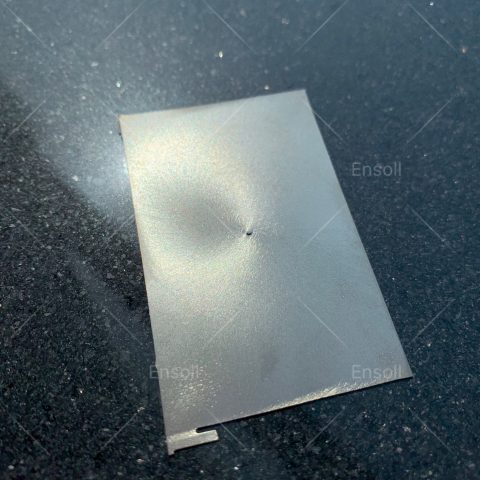

Thickness is 0.34 MM

whole process last 7 minites


NdFeB is an important Magnetic,it’s widely used in a lot industries, because of the high hardness, it’s very difficult to cut.Normally feed speed is 3MM/MIN

Endless diamond wire loop can cut with a 5MM/MIN feed speed.


for more details please contact us directly.


What We Cut:

Not only NdFeB but also Stone,Metal,Glass,Silicon and other hard brittle materials can be cut by diamond wire loop saw.

Special diameter and length on request!
