Gem Stone Cutting with Diamond Wire Saw

Category:

  • Description
  • Inquiry

Gem stone cutting details



Cutting Tools:Endless Diamond Wire Loop

Wire TypeMulti strand  wire
Linear Velocity(m/s)30-60
Feed Speed(mm/min)1-100
CoolingDry
ApplicationJadeite

Cutting Process:

Cutting Material :Jadeite

Linear Speed:45m/s

Feed Speed:1 mm/min

Cooling Way:wet

Tensile Strength:100N

Machine type: Rotary wire saw machine

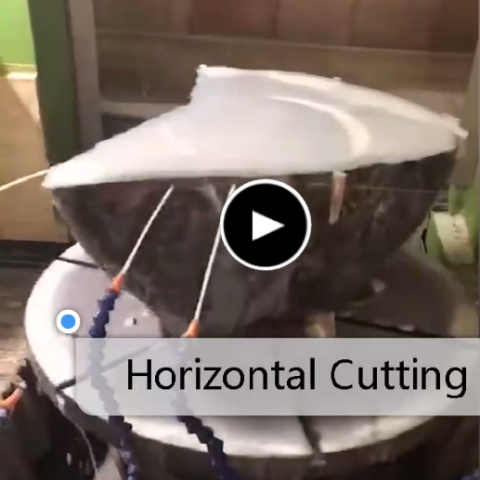

Diamond Wire Loop is suitable to cut all kinds of gem-stones. It used to do the initial raw stone cutting work.Our wire saw machine is a horizontal cutting machine with a lower loading platform,it’s easier to load gemstone which is normally very heavy.

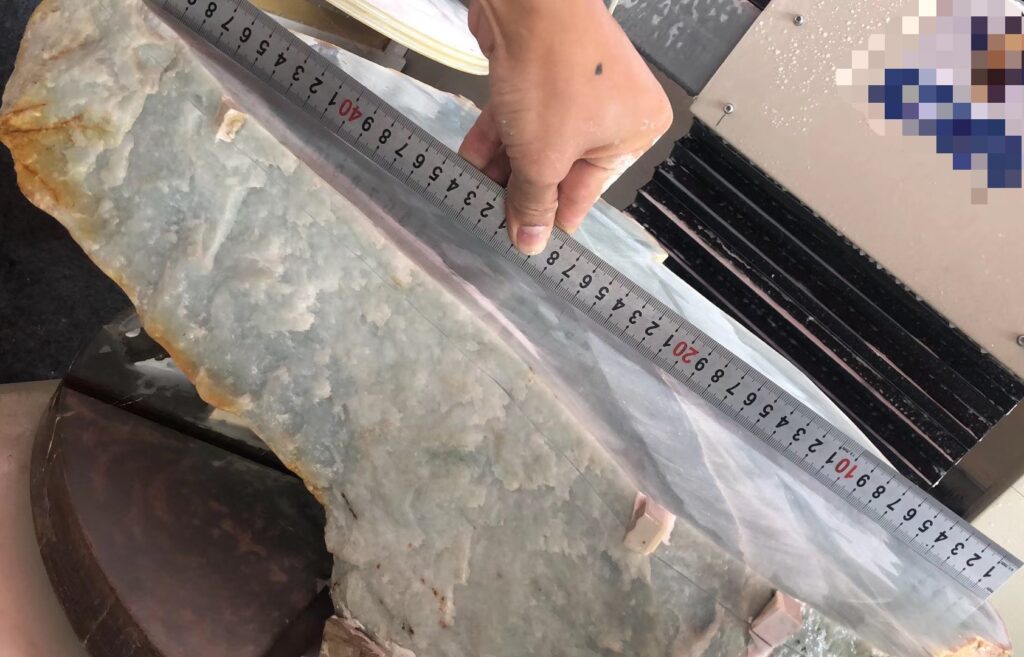

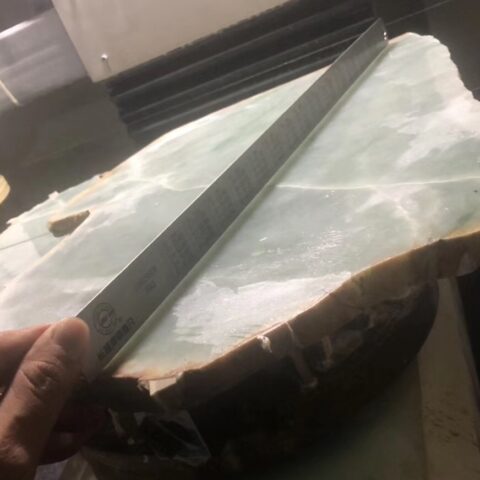

For Gem ,the material is very expensive .So the slice have to be staight and flat.





Summary

Gem-stone are very precious, only a small cutting accident may ruin the whole design and bring huge loss. Diamond wire loop shows great advantages on cutting precious minerals, not only gem-stone but also meteorites, rare minerals and other stones.

 What we cut :

Not only Graphite but also Stone,Metal,Glass,Silicon and other hard brittle materials can be cut by diamond wire loop saw.

Special diameter and length on request!
