Tire Section Cutting With Diamond Wire Loop

Tire Section Cutting With Diamond Wire Loop

  • Description
  • Inquiry

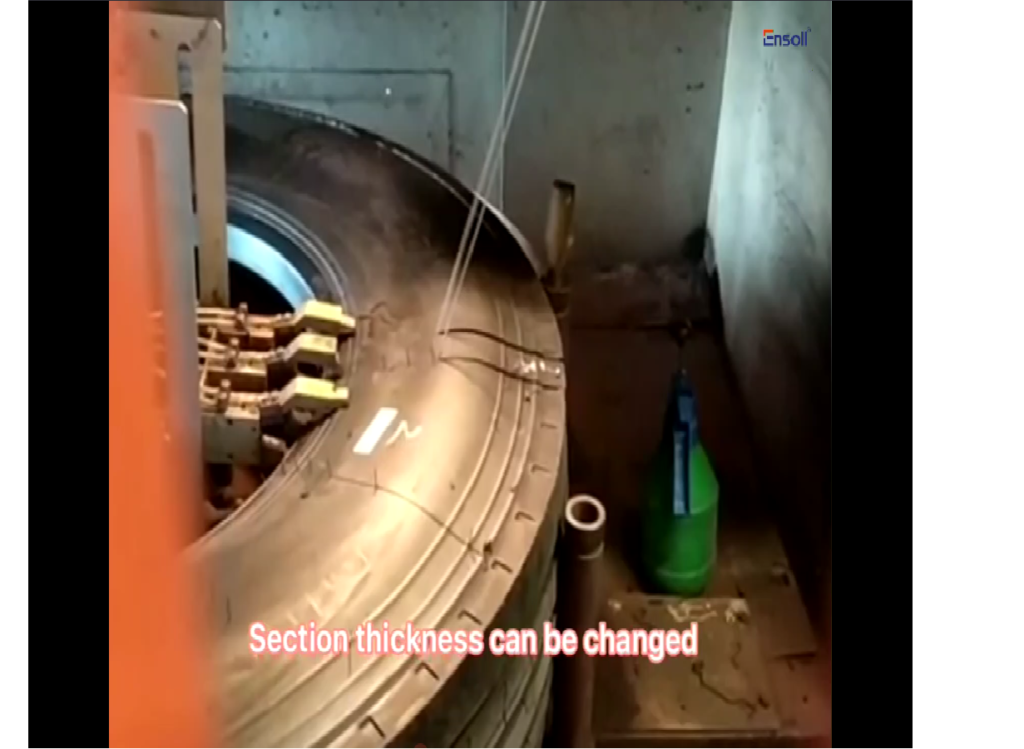

Tire Section Cutting with Endless Diamond Wire Loop

Cutting video details

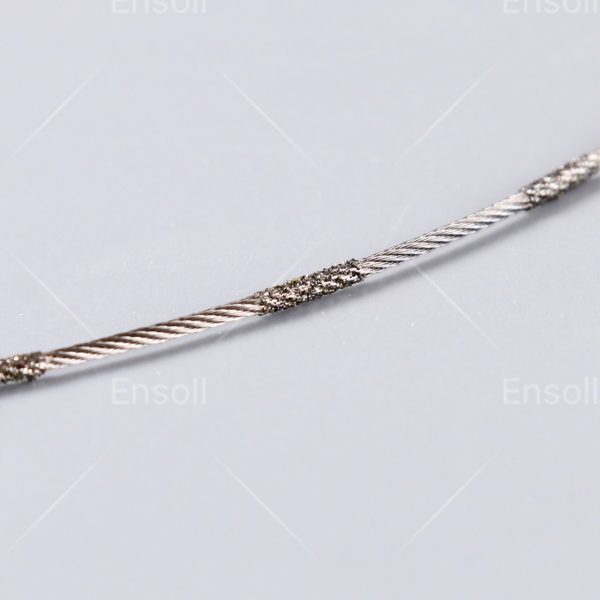

Cutting Tools:Diamond Wire Loop

Wire TypeMulti strand  wire
Linear Velocity(m/s)30-60
Feed Speed(mm/min)5-100
CoolingDry
ApplicationTire

Cutting Process:



Linear Speed: 35 m/s

Feed Speed: 50 mm/min

Cooling Way: dry

Tensile Strength: 130N

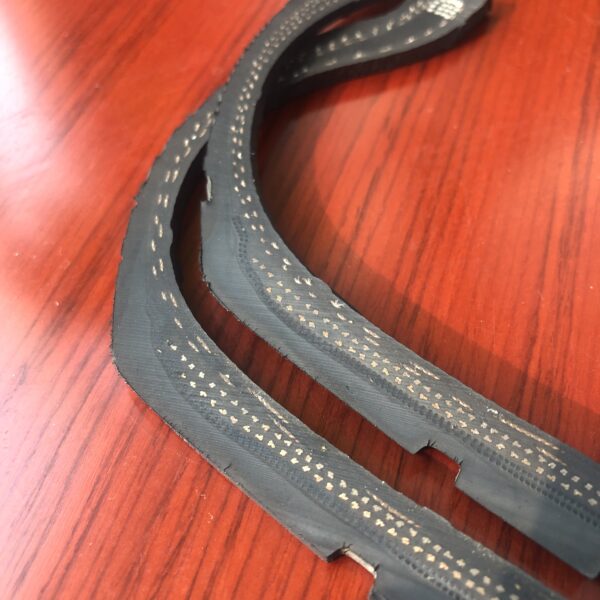

Cutting Results:

  • The cutting surface was clear and smooth, even the parts with steel wire was cut off quite flat .There is no need to do secondary grinding.

Cutting Advantages

1,Cutting Life

PCR : around 80 pcs  tire section.
TBR: around 40 pcs tire section.

2,Slice Speed

PCR : around 10mins.
Engineering
TBR: around 25 min

for more details please contact directly.



What We Cut:

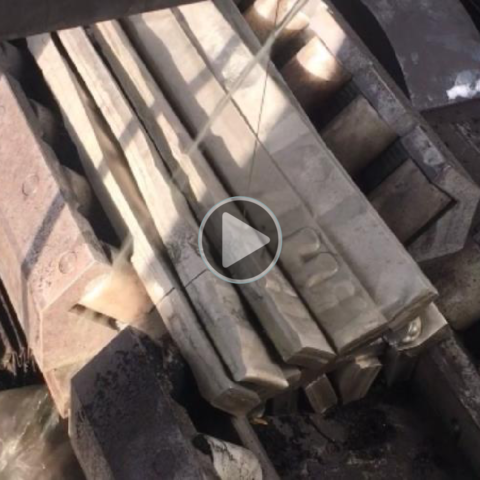

Not only Tire but also Stone,Metal,Glass,Silicon and other hard brittle materials can be cut by diamond wire loop saw.



Special diameter and length on request!
