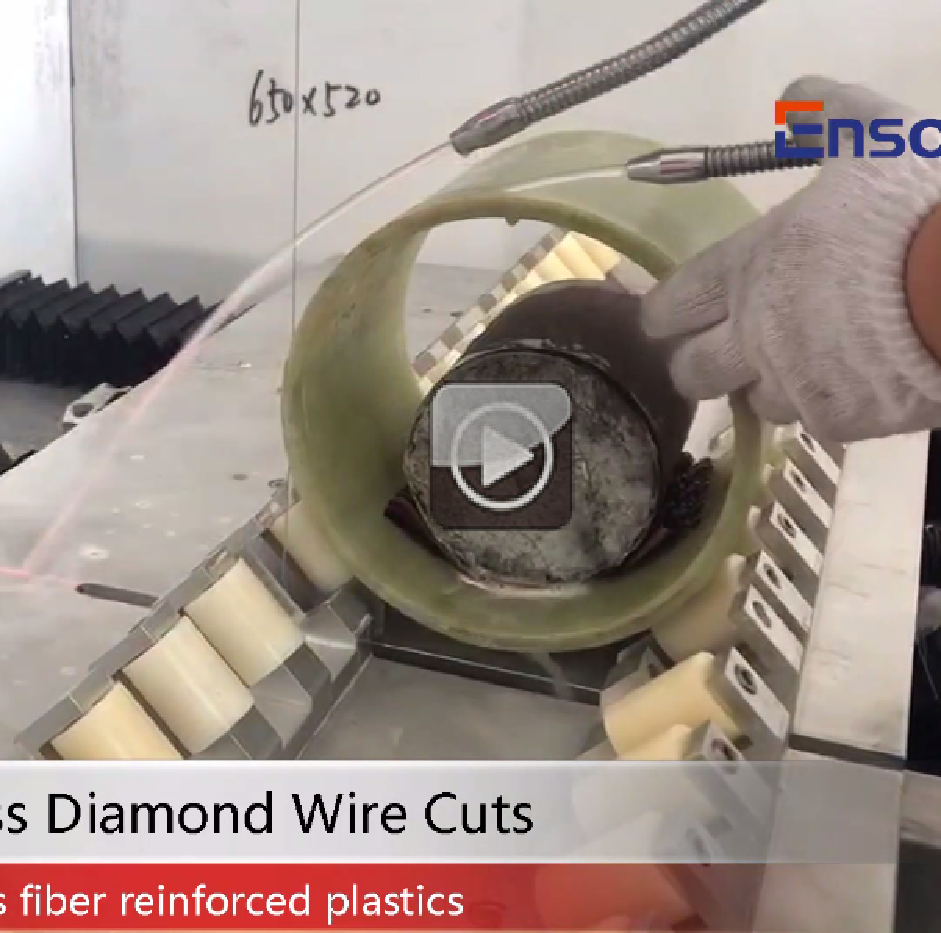

Cutting video details
Cutting Tools:Diamond Wire Loop
Wire Type | Multi strand wire |
Linear Velocity(m/s) | 30-60 |
Feed Speed(mm/min) | 5-100 |
Cooling | wet |
Application | Glass Steel |
Cutting Process:
Cutting Material :Glass steel tube
Wire Type: D 0.6
Linear Speed: 40m/s
Feed Speed: 45mm/min
Cooling Way: dry
Tensile Strength: 130N
Cutting Results：
Quicker-linear speed can be upto 50m/s
Smoother-clear and smooth cutting surface
No edge break
Cutting Advantages
1,Cutting Shape
Use diamond wire loop as cutting tool, cutting direction can be changed during the cutting process.
2,Slice Thickness
As diamond wire loop is thin and running speed are high, it’s able to cut an extremely thin slice.
3,Surface Quality
There is no wire mark on the surface, it’s flat and smooth.
4,Cutting Efficiency
High linear speed ensures high cutting speed, diamond wire loop can highly improve cutting efficiency.
Summary
Glass reinforced plastic is very brittle, only wire cutting can avoid material breakage and the cutting speed can be very fast.
Endless diamond wire cutting seems to be a good solution for this kind of material .
There are different model can be chosen to cut glass steel. D0.55, D0.65 with length 2200mm, 3500mm, 5400mm, and so on .
What We Cut:
Not only Graphite but also Stone,Metal,Glass,Silicon and other hard brittle materials can be cut by diamond wire loop saw.
Special diameter and length on request!
