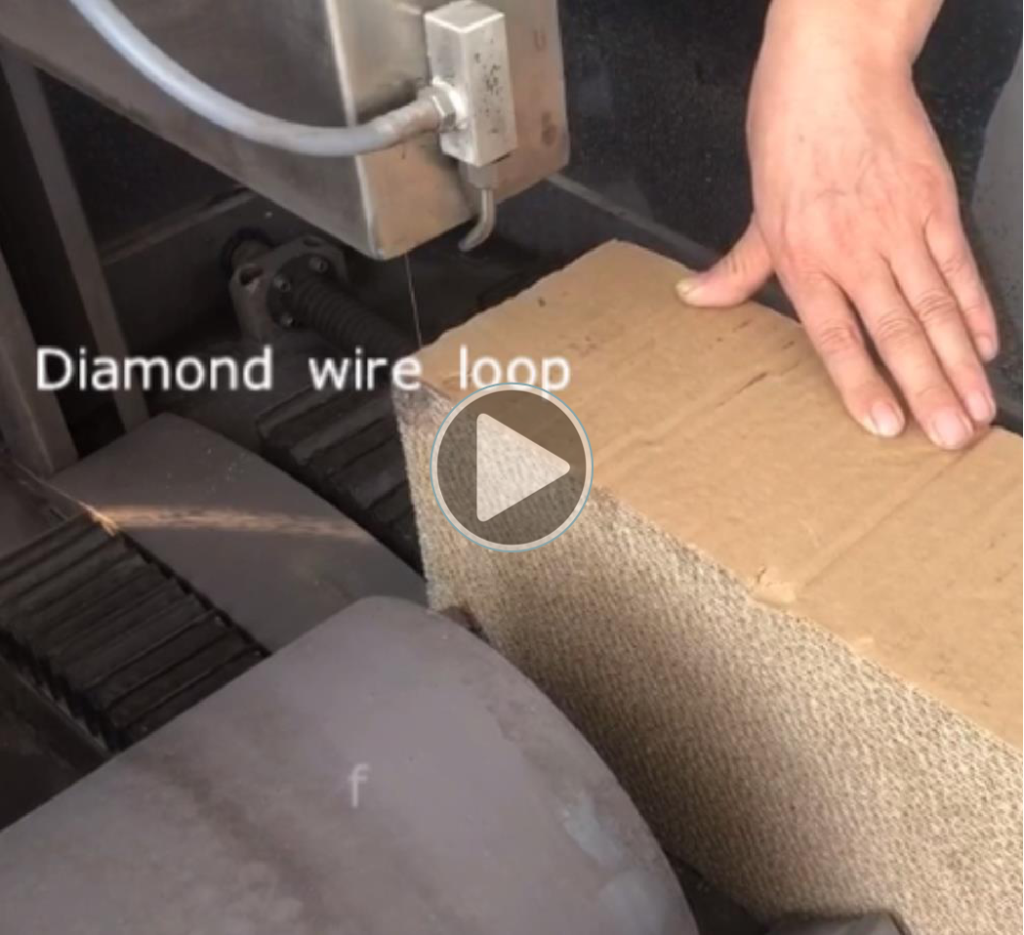

Corrugated Paper Cutting with Diamond Wire Blade
Cutting video details
Cutting Tools:Diamond Wire Loop
| Outer Diameter(mm) | 0.60 |
| Diamond Size | 90μm-106μm |
| Circumference Length(mm) | 2960 |
| Wire Type | Multi strand wire |
| Linear Velocity(m/s) | 30-60 |
| Feed Speed(mm/min) | 5-100 |
| Tensile Strength(N) | 120-150 |
| Cooling | Dry |
| Application | Corrugated Paper |
Cutting Process:
Cutting Material :Corrugated Paper
Wire Type: D0.60
Linear Speed: 40m/s
Feed Speed: 45mm/min
Cooling Way: dry
Tensile Strength: 130N

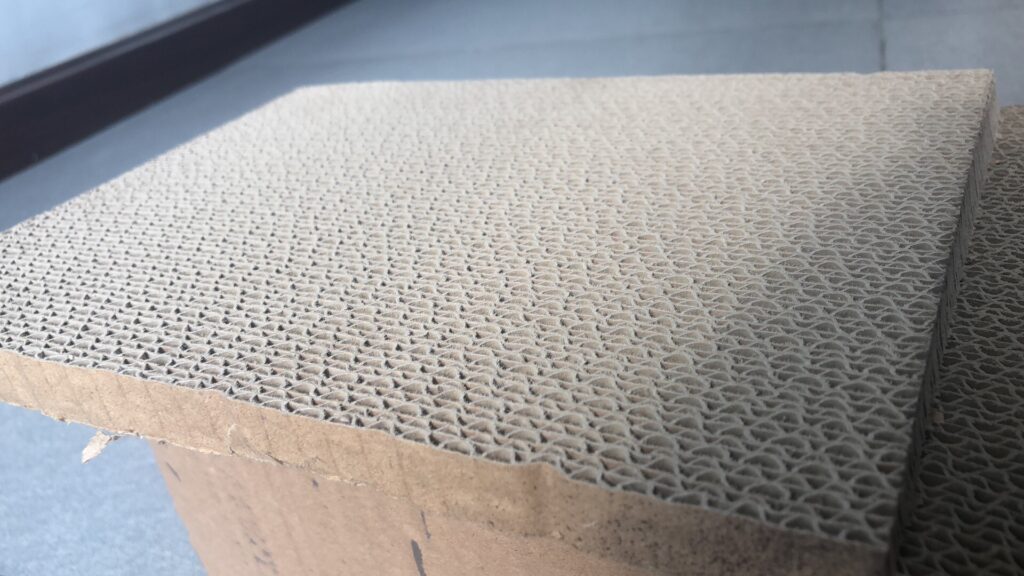

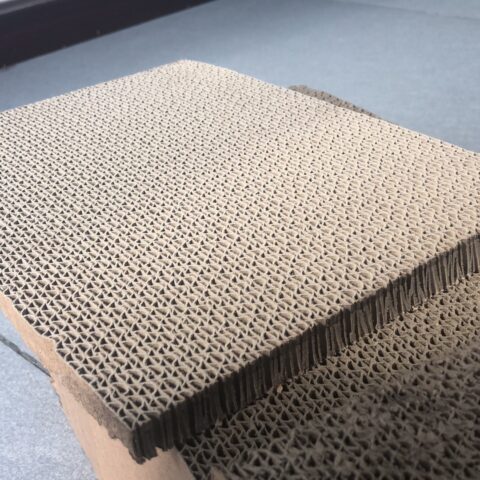

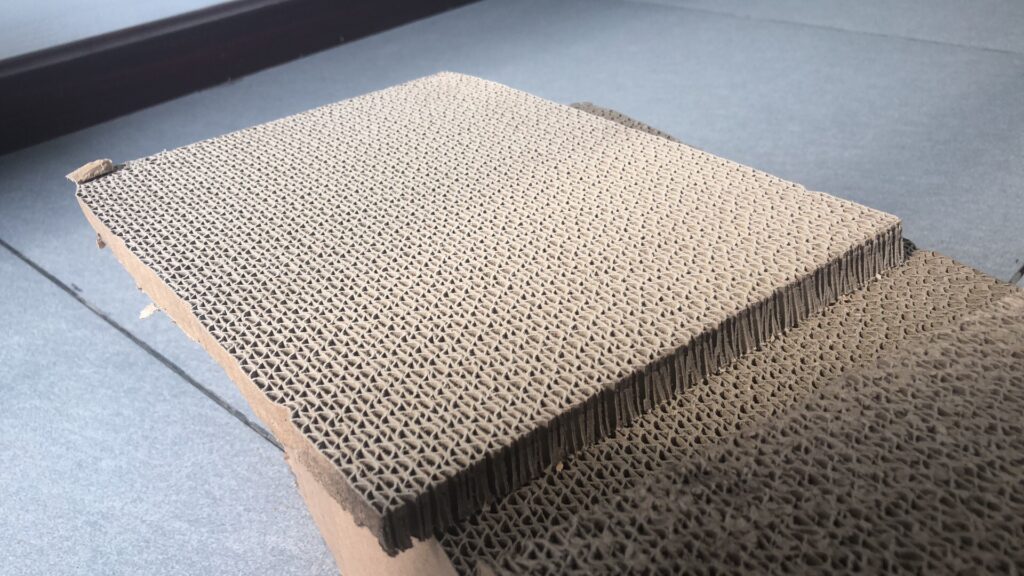

Cutting Results：
- Smoother–there is no burr on the surface
- Flatness–The surface is flat without undulation
- Special Shapes-cutting direction is changeable
Cutting Advantages
1,Cutting Shape
Use diamond wire loop as cutting tool, cutting direction can be changed during the cutting process.
2,Slice Thickness
As diamond wire loop is thin and running speed are high, it’s able to cut graphite with extremely thin slice.
3,Surface Quality
There is no wire mark on the surface, it’s flat and smooth.
4,Cutting Efficiency
High linear speed ensures high cutting speed, diamond wire loop can highly improve cutting efficiency.
What We Cut:
Not only KDP ,but also YAG crystal, Marble, Stone,Metal,Glass,Silicon and other hard brittle materials can be cut by diamond wire loop saw.
Special diameter and length on request!
Related Products
Read MoreQuick ViewKDP CRYSTAL Cutting with Diamond Loop
Large size KDP crystal is an expensive national defense military material, because of its softness and brittleness, easy to deliquescent, it is currently recognized as difficult to process.
Diamond wire cutting machine and diamond wire loop is the best solution to overcome the difficulties of band saw, and a major innovation to solve the KDP crystal cutting problem.It has been proved that this method has small cutting force, narrow cutting slit, high cutting efficiency and low stress precision cutting for precious brittle materials.
Read MoreQuick ViewGraphite Cutting with Endless Diamond Wire Loop
Graphite , archaically referred to as plumbago, is a crystalline form of the element carbon with its atoms arranged in a hexagonal structure.
Graphite is not difficult to cut, but products made of graphite are kind of brittle, it’s difficult to have a clear cutting edge without outbreaks .As it’s widely used in many applications, the cutting speed is also a difficulty and still unsolved .
Read MoreQuick ViewFoam cement cutting with diamond wire saw

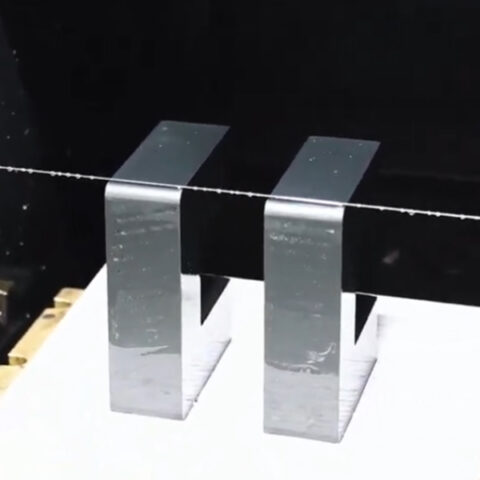

Read MoreQuick ViewEndless Diamond Wire Cutting For Metal

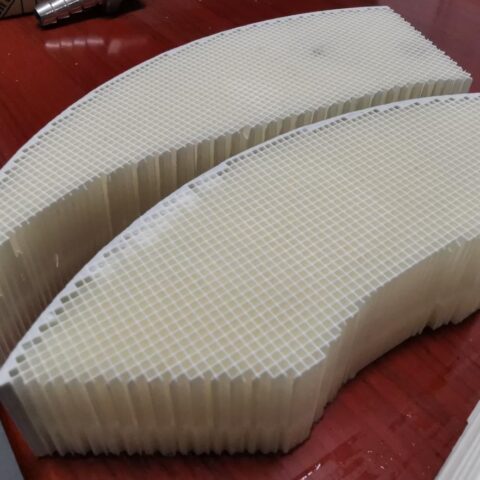

Read MoreQuick ViewCordierite/honeycomb structure cutting with diamond endless wire
